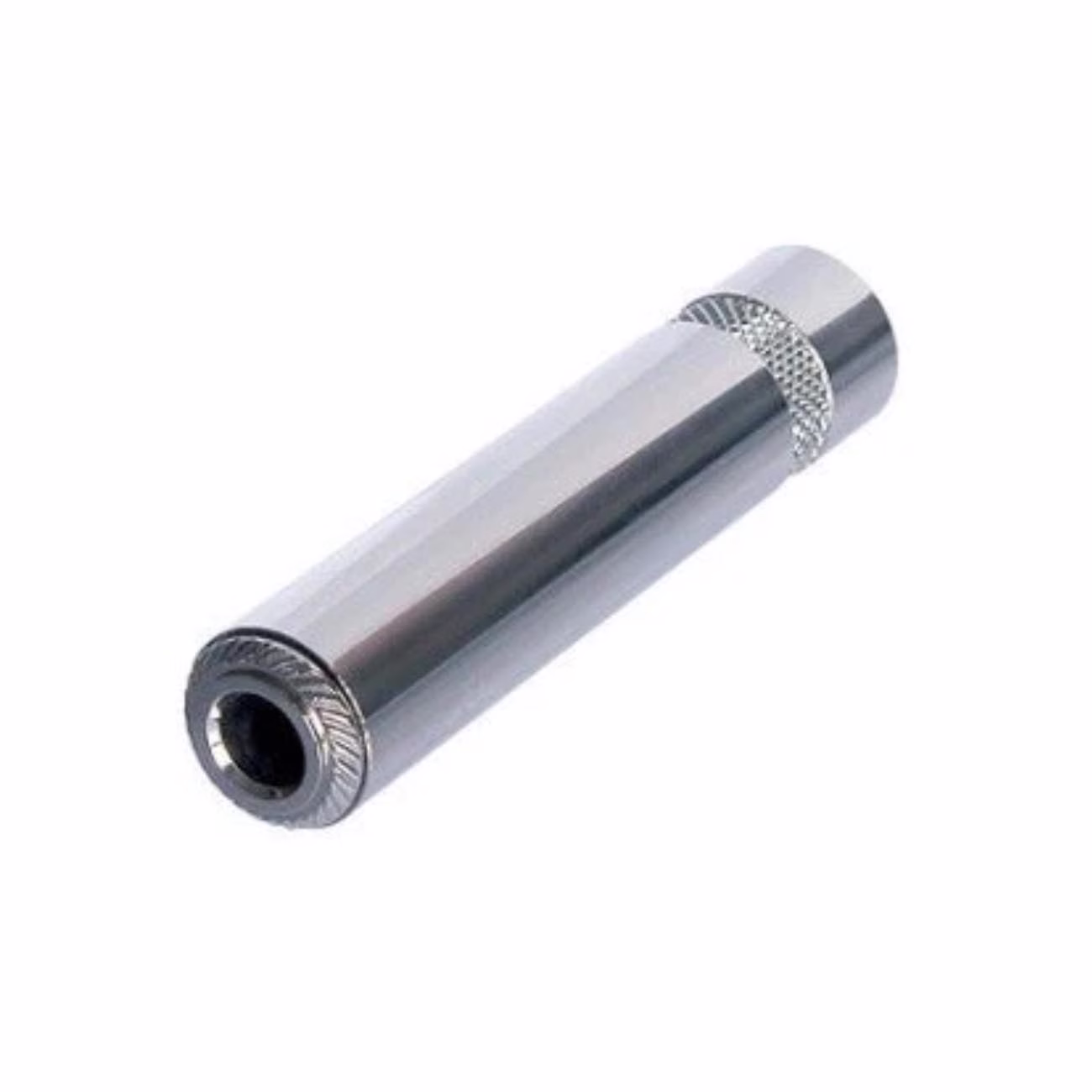

Rean Nys2203P – Jack Trs 6.3 Volante
$2.500
Rean NYS2203P Jack volante 1/4 Stereo metalico
10
Ítems vendido en los últimos 2 días
10 disponibles
14
¡Personas viendo este producto ahora!
SKU:
68280994687329
Categorías: Audio Pro, Cables & Conectores, Conectores, Rean
Descripción
Technical Information
Product
Title NYS2203P
Connection Type Jack
Gender female
Electrical
Dielectric strength 0.5 kVdc
Insulation resistance ≥ 1 GΩ
Rated current depends on mated connector
Contact resistance depends on mated connector
Mechanical
Cable O.D. 6 mm
Insertion force ≤ 20 N
Withdrawal force ≥ 10 N
Lifetime 1000 mating cycles
Wiresize
Material
Contact plating Nickel
Contacts Brass (CuZn39Pb3)
Shell Brass (CuZn39Pb3)
Shell plating Nickel
Strain relief SnCe plated, crimp type
Insulation Thermoplastic
Environmental
Solderability Complies with IEC 68-2-20
Temperature range -25 °C to +70 °C
Información adicional
Peso | 0.1 kg |
---|---|
Dimensiones | 7 × 3 × 3 cm |
Marca |
Rean |
